PM 21523

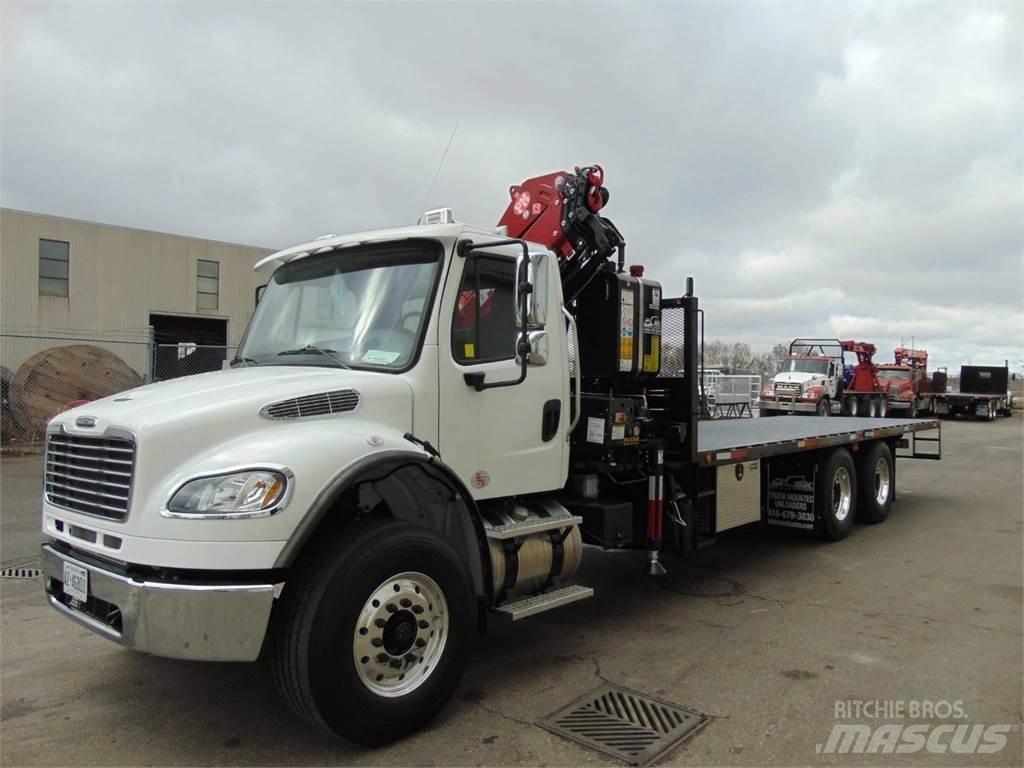

Boom Details NEW  – PM 21523 Knuckle Boom With hydraulic out & down stabilizers, 4-hydraulic extensions to 40’ Horizontal reach (52’ vertical) HORIZONTAL Capacities: 10 ,145 lb at 14’ 6,700 lb at 20’ 5,070 lb at 26′ 4,060 lb at 32’ 408 Degrees Rotation on Main Hydraulic Slewing , Crane Painted PM Blue Double pilot operated on slewing and pilot operated check valves on all cylinders Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom DANFOSS  Proportional Valve Controls – single sided operator control station SCANRECO  Radio Remote Control  – electronically actuated controller, proportional precision and ultimate operator feel and control Radio Remote includes: 5-micro speed reducing settings at handheld, emergency stop, 2-batteries with in-cab charger, 50’ back-up cord Hydraulic OUT and Hydraulic DOWN  Extra Wide  – 21’ 6” span  , 2-sided stabilizers w/ round foot pads welded to bottom of cylinder. 15 degree negative angle  on folding arm Hydraulic Overload Protection  – simplified system that prevents boom from overload Load Holding Valves  on each cylinder for Safety and Security of Operator and Load Heavy Duty Pedestal Turning Cylinders  for greater turning torque, reduced wear, and improved precision Load Tested & Installed behind cab, with integral sub-frame to meet or exceed all CMVSS Standards Truck Details New  – Freightliner M2-106  Tandem Diesel  Truck:  60,000 lb GVWR Truck Cab white in colour CUMMINS  350 hp Allison automatic transmission. 20,000 lb 385/65R22.5 Front tires on Steel white rims 40,000 LB Rears on air ride Suspension with 11R22.5 tires on steel white rims – steel inner 278” wheel base Full double frame chassis 54” spread at ta Truck  Features Include:  Air cond., AM/FM  stereo, power windows/locks, tilt steering,  cruise, air ride cab, painted bumper, heated mirrors, engine block heater, inter axle lock up, single 70 gal  aluminum fuel tanks, etc… Deck Details New  – 24’  x 102” Flat Deck With Steel Checker plate deck surface installed 40” + headboard with over-cab 8 sliding tie-down winch straps on passenger side Winch bar holder and winch bar, ladder Reflectors and 5-side lights as required by ministry standards Deck to be built as per your specifications
