Self-propelled aerial work platforms 13 Mt

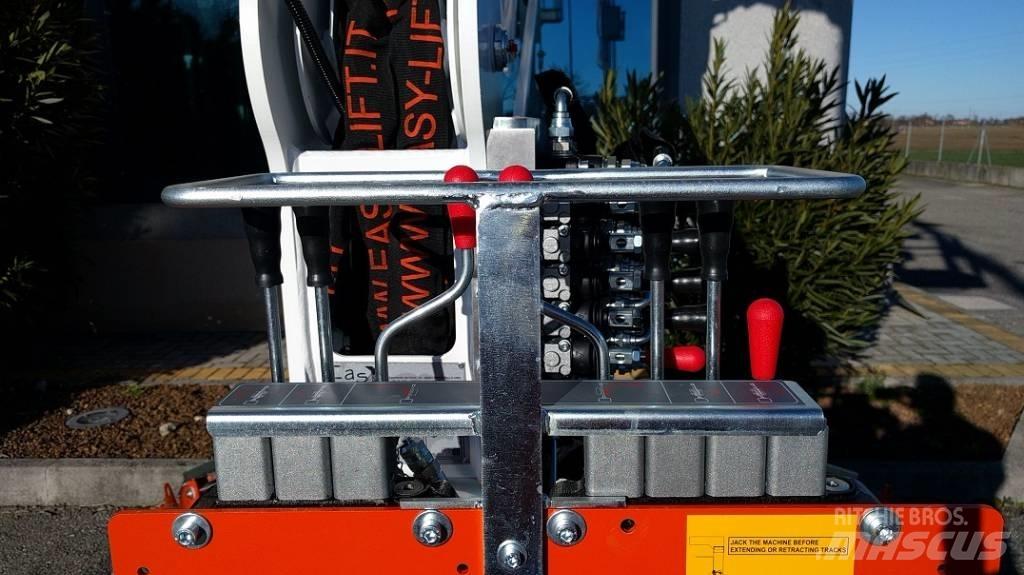

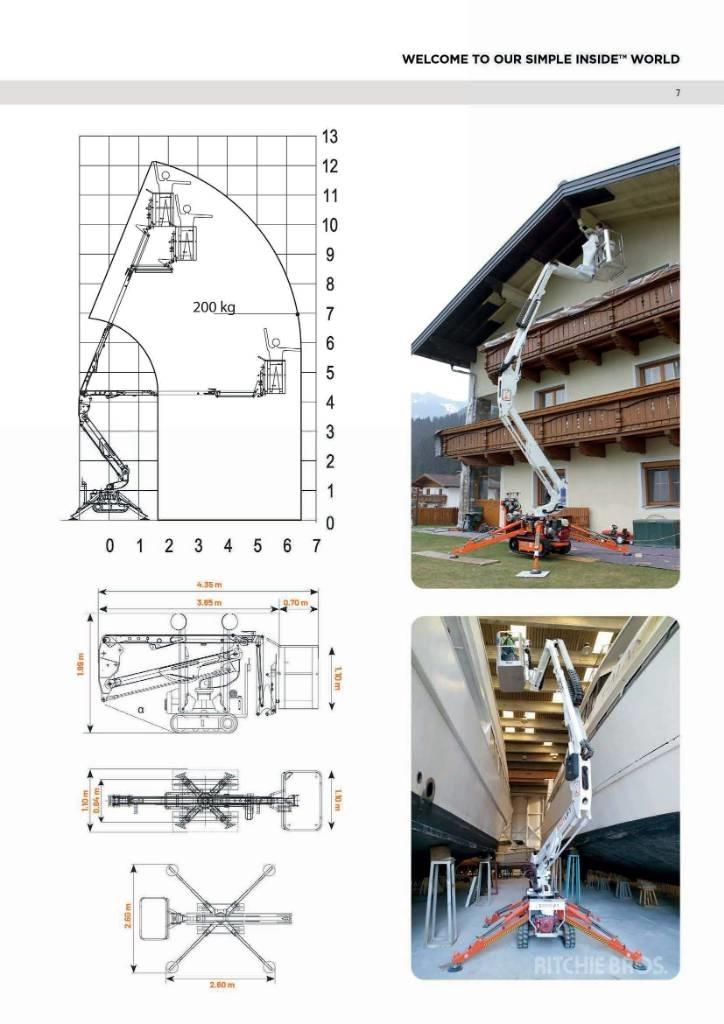

Max. working height: 12.20 m, Max. working outreach (200 kg): 6.50 m, Turntable rotation: 320°. Aluminium basket 1100x700x1100 h mm with max. load capacity 200 Kg (2 operators), Petrol motor: Honda 9.6 kW, Max. grade limit in translation: 30%, Gross weight: 1600 kg, Outrigger footprint: 2600x2600 mm, Transport dimensions: length 4250 mm – width 890 mm – height 1980 mm, Hydraulic and proportional controls, Lock valves on cylinders, Acoustic signal during translation. Motor start/stop control from the basket, Hand pump for emergency descent, Locks for safety belts on the basket, Rubber crawler-tracks, Electric motor 220 V, Hour counter, Air/water plug Electrical plug 220 V, Standard painting, CE Certificate, Use and Maintenance handbook,
Expositive plattform더 보기
Bini Gru
Via Aldo Moro,62 40050 Castello D'Argile Bologna 이탈리아
