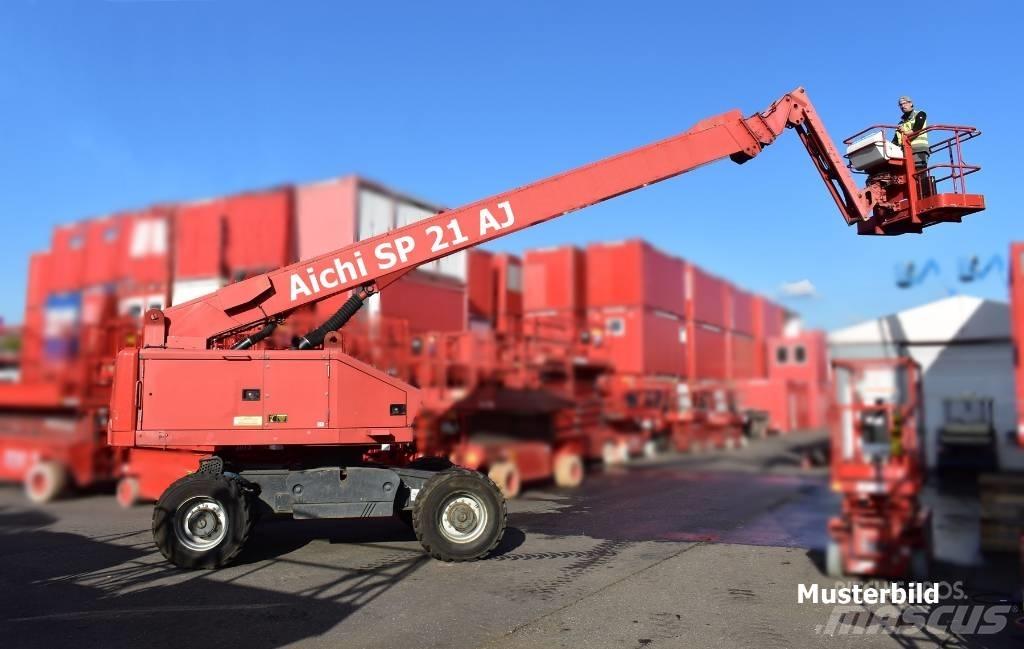

아이치 SP 21 AJ

Manufacturer: Aichi Model: SP21AJ Year of build: 2005 Condition: Used Data: Max. working height: 23,30 m Max. platform height: 21,30 m Max. reach: 17,90 m Drive type: Diesel Total dimensions LxWxH: 12,00 x 2,42 x 2,65 m Platform dimensions LxW: 1,94 x 0,87 m Max. basket load: 250 kg Swivel range: 360° Overhang: 1,14 m Movable up to working height: 23,30 m Max. Pitch angle: 45% Wheel pressure (Support pressure): 70 kN Ground clearance: 0,24 m Own weight: 14.700 kg Special features: Rotatable work basket, basket arm/vertical rotation angle -45/+80°, four-wheel drive, pendulum axle, socket in the basket.
