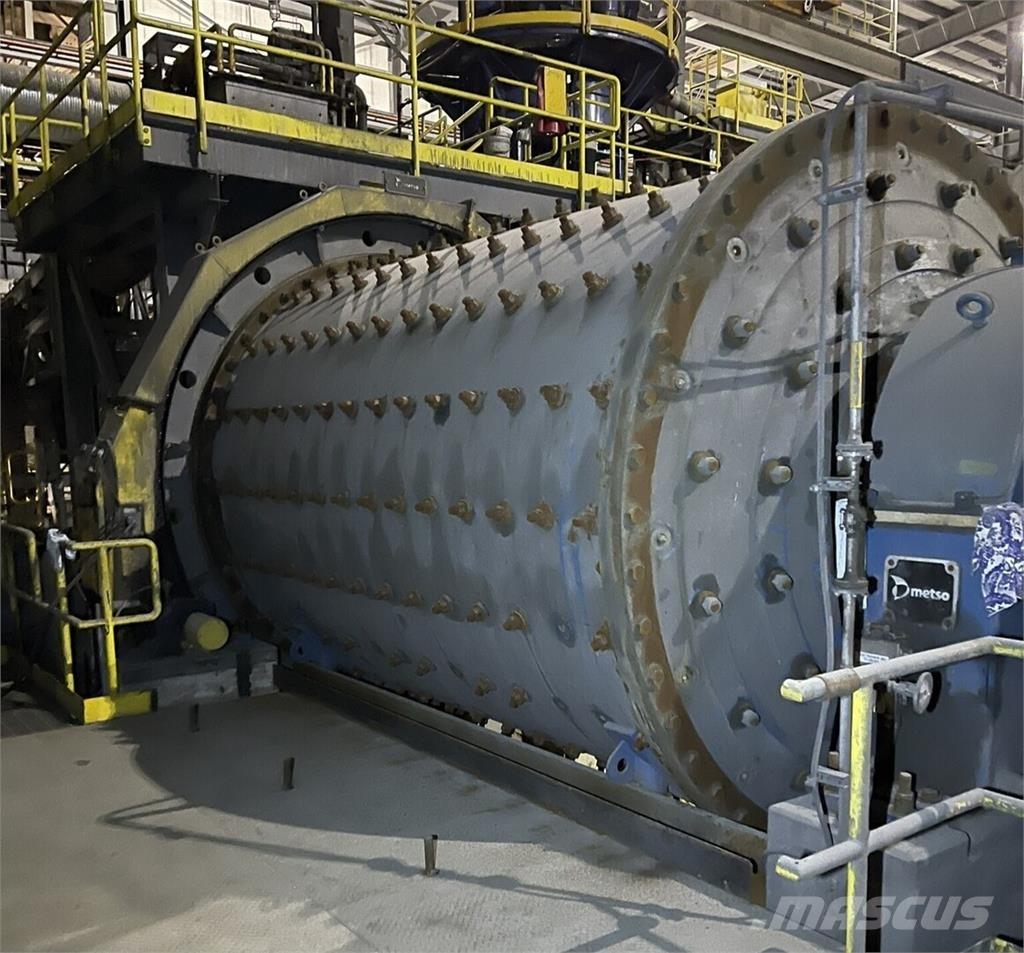

2008 Metso 10' x 14' Rod Mill, 400kW (536HP) – Metalworking Grinders – 536 hp, 3-phase , 1187 rpm, 4000 volts Title: 10' x 14' Rod Mill, 400kW (536HP) SKU: 123730 Year: 2008 Condition: Used S/N: 75806 GeneralHorsepower:536hp Phase:3-phase RPM:1187rpm ElectricalVoltage:4000volts General Specifications Mill Size: 10ft. x 14ft. Type: Rod Mill Serial: 75806 (Asset#: E2-MIL-001) Drive Motor: WEG 400kW (536HP) Electric Motor, 1187rpm, 4000V, 3-Ph, 60hz Clutch: EATON 28VC1200 SW Speed Reducer: MOVENTAS D4PSF70, 4.9412:1 Ratio Inching Drive: MOVENTAS 4C200N Inching Drive w/ Brake (connected to extended motor shaft) Gear Set Information: Teeth: 270 (Gear), 19 (Pinion), 14.2:1 Ratio - DP: 1.75 - Centers: 83.533in. (2121.7mm) Mill Speed: 16.9rpm % Critical Speed: 68.4% Trunnion Bearing Lube System: 650AL-Duplex Lubrication System - Trunnion Bearings Size: 48in. x 16in. - Type: Hydrodynamic Sleeve Bearings Mill Lining: Metal Liner Assembly Feed Arrangement: Lined Spout Feeder w/ Seal Assembly Discharge Arrangement: Discharge Trunnion Liner Grinding Media: Steel Grinding Rods Rod Specifications Rod Charge Size & Weight Distribution: - Total Rod Charge Weight: 110,000lbs (49,895kg) - Rod Length: 13ft. Rod Diameter (3.0in.): 55% Initial Charge, 60,000lbs (27,215kg) Rod Diameter (2.5in.): 45% Initial Charge, 50,000lbs (22,680kg)
