히타치 SEIKI VS50

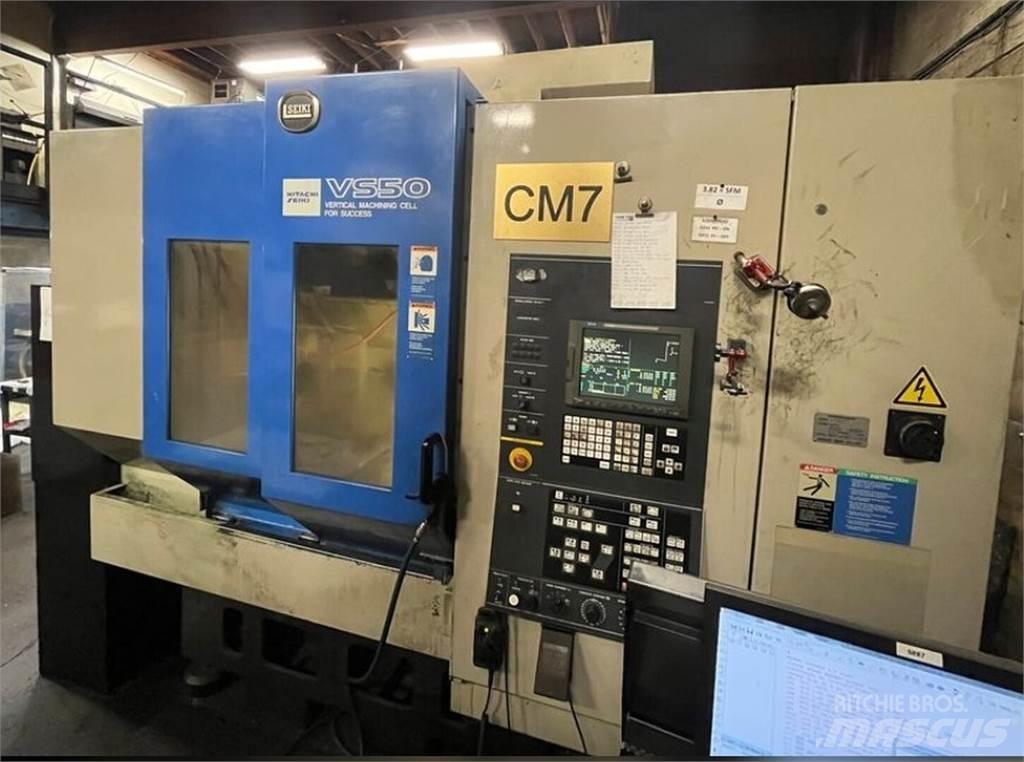

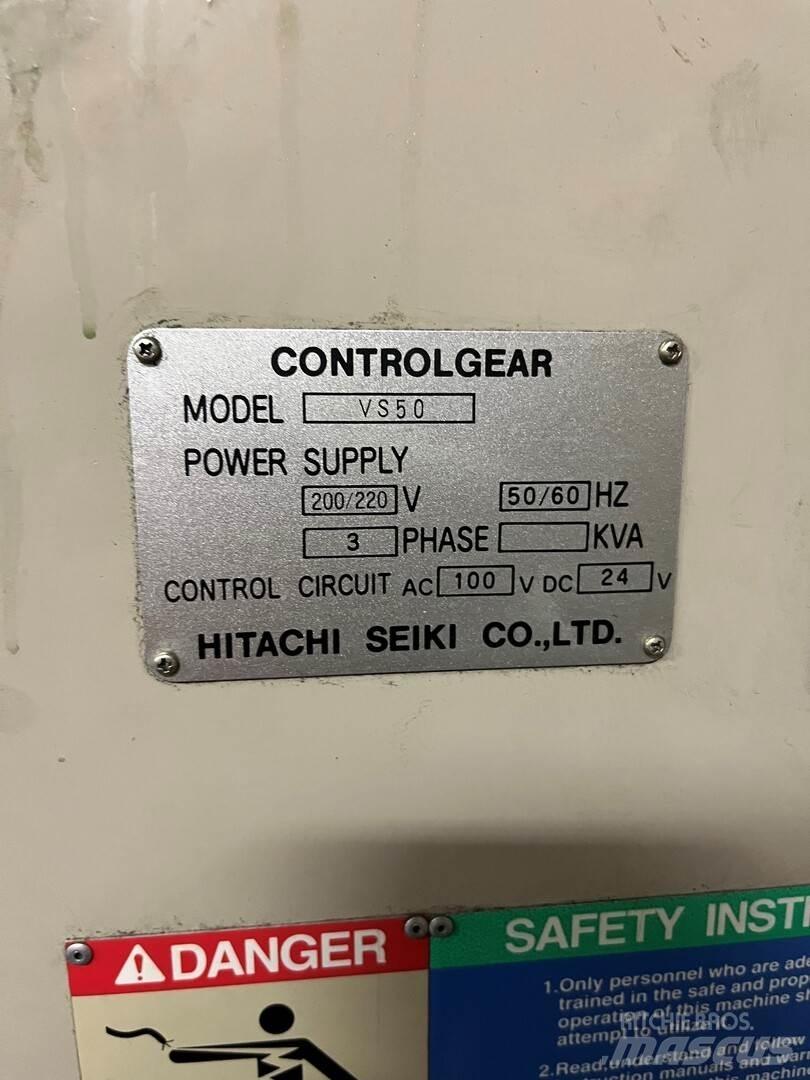

2000 Hitachi Seiki VS50 CNC Vertical Machining Center – Metalworking Milling Machines – 7/24 taper , 20 ", 1120 x 510 mm , 220 volts, 3-phase , Yes Title: VS50 CNC Vertical Machining Center SKU: 115997 Model: VS50 Year: 2000 Condition: Used GeneralSpindle Taper:7/24 taper Cross Travel (Table):20" Table Size:1120 x 510 mm CNC:Yes ElectricalVoltage:220volts Phase:3-phase [VIDEO LINK](... Circuit Volts: 100 VAC, 24 VDC Control Unit: SEICOS Movement: - X-Axis: 1000 mm - Y-Axis: 510 mm - Z-Axis: 450 mm Distance From The Table Surface To The Spindle Nose: 150 - 600 mm Distance From The Column Front To The Spindle Center Line: 640 mm Max. Table Loading Capacity: 750 kg Shape Of Table Surface: 18 mm T-slot 4 lines Rapid Traverse Rate: - X, Y: 40000 mm/min - Z: 24000 mm/min Cutting Feed Rate: 1 - 15000 mm/min Jog Feed Rate: 0 - 5000 mm/min (21 steps) Machine Height: 2785 mm Floor Space (approx): 2900 mm x 2400 mm Weight (approx): 8200 kg Oil Cooling Unit Brand: Daikin Model: AKS55K Cooling Capacity1.3/1.4 kW Volts: 200/220 V Refrigerant: R22
