Geda 500 ZP /1000 Z
부가세 제외가격
8
즐겨찾기
공유
검색 저장출력
INFO
제품군
인원/화물 앨리베이터
제작사/모델
Geda 500 ZP /1000 Z
제작년도
2025
컨디션
새제품
장비위치
Wrocław, dolnośląskie
국가
폴란드
일반 등급
1
2
3
4
5
마스쿠스 ID
3A2071FB
가격
화폐 선택
세부정보
인양력
1000 kg
상태 정보/보증
Nowe, gwarancja 12 miesięcy
제품 국가
독일
증명서
유럽 위원회(CE)
기타 정보
Hello,
As the General Distributor of the Geda brand in Poland, we present transport platforms for persons and material Geda 500ZP / 1000 Gen 2 for 12m:.
Special passenger and material platform with galvanised steel mast based on Geda 500 Z/ZP. A unit with a specially increased load capacity increased from 850 kg to 1000 kg!
1. Load capacity: 500 kg or 5 person for persons mode or 1000 kg for material mode.
2. Lifting speed: 12/24 m/min.
3. Lifting height: 100 m ( current version 12 m)

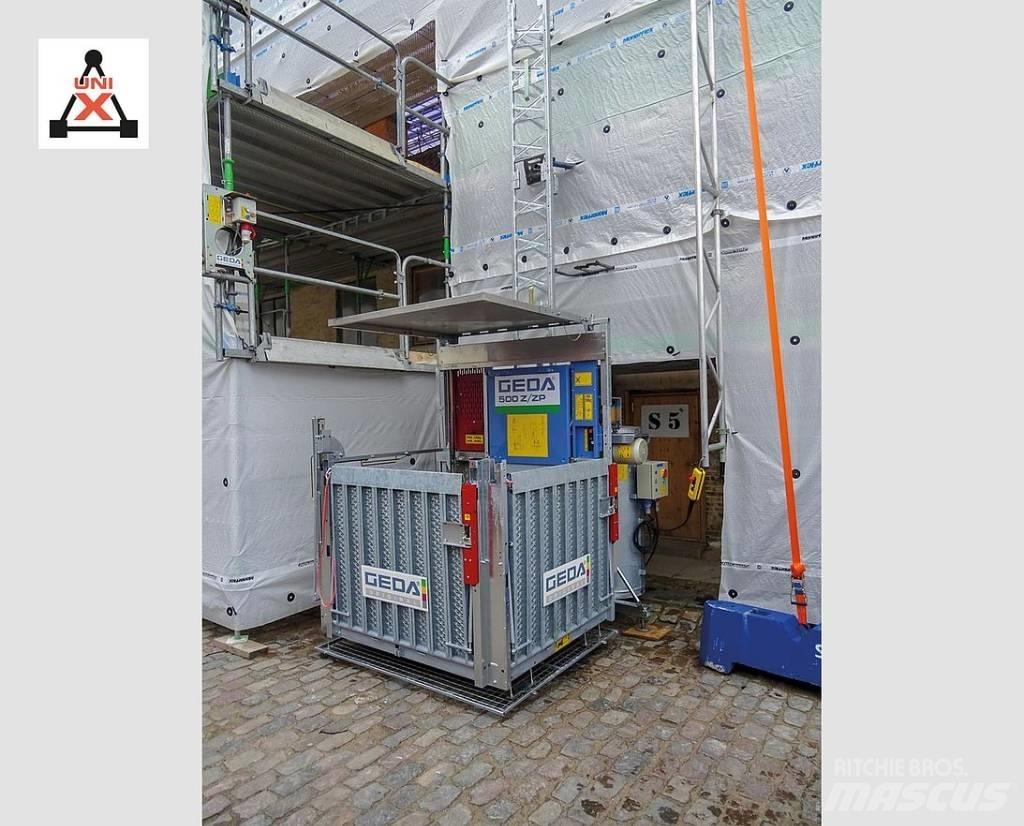

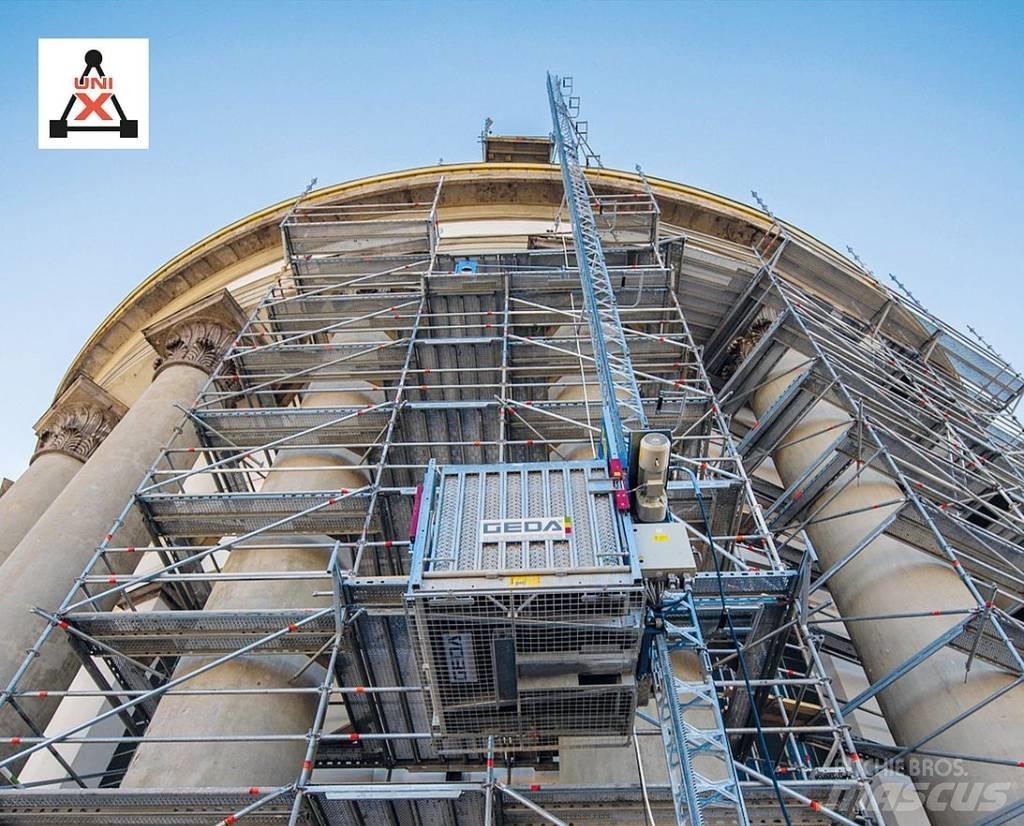

Geda 500 ZP /1000 Z has been specially designed for use in harsh construction site conditions. The unit is extremely flexible and, with two separate controls, it can be used as a material lift with a very good lifting capacity of 1000kg or simply as a transport platform for transporting people and material. Lifting speeds of 24m/min for material transport and 12m/min for personal transport guarantee rapid construction progress. The hoist is an indispensable support for the rapid assembly of scaffolding as well as for subsequent work at the construction site. Geda 500ZP / 1000Z With minimal space requirements, high load capacity and various application options, the construction hoist saves time and ensures optimum logistics processes on site. Every construction site has its own challenges. Different platform versions with different loading doors and flaps therefore allow optimum adaptation of the GEDA 500 Z/ZP to the requirements on site. The spacious loading platform without cover provides sufficient space for all types of construction materials.
Set consisting of:
- Foot section with 4 adjusting spindles and base mast 2.3 m
- Load platform A 1,60 x 1,40m, 1 loading flap /1 unloading flap (Load capacity 1000 kg)
- Send- and collect-control unit permanently installed, key switch (incl. automatic reset in material mode), assembly control (with separate key) and power socket 230 V
- Trolley with drive unit 3.0/6.1 kW/400 V/50 Hz and overspeed safety brake
- Safety stop approx. 2 m above the ground with warning sound and repeating of the drive command
- Operation and emergency limit switches at top and bottom
- Integrated monitoring of the mast screwing and mast end
- Overload protection with indication
- Integrated monitoring of the mast screwing and mast end
- Manual control with 5 m cable, plug-in type
- Control for drop test with 10 m cable, plug-in type
- Automatic lubrication system
- Tear off securing for trailing cable
- Hour meter
- Anti-smashing-device
- Roof rotatable and tiltable
- Cable bin with trailing cable 25 m lifting height (futher lenghts upon request)
- GEDA UNI-X-MAST 1.5 m (hot dip galvanised) with four captive screws (M16) and nuts
-Set of mast ties for wall fixing with fixing tubes
- Trailing cable guide
Upon request, we can prepare an offer for other specifications and additional assortment더 보기
High-Tech Sp. z o.o.
Strzegomska 55G 53-611 Wrocław Dolnośląskie 폴란드
